Laminar Air flows (Vertical/Horizontal)

High-Efficiency Air Filtration Systems

Laminar air flow systems (vertical and horizontal) are designed to provide a continuous flow of filtered air in a uniform direction, ensuring a sterile and contamination-free environment. In vertical units, air flows downward, while in horizontal units, it moves across the workspace. Equipped with HEPA filters, these systems remove airborne particles effectively. Widely used in laboratories, pharmaceuticals, and cleanrooms, laminar air flows maintain high levels of cleanliness, protect sensitive processes, and ensure compliance with strict environmental standards.

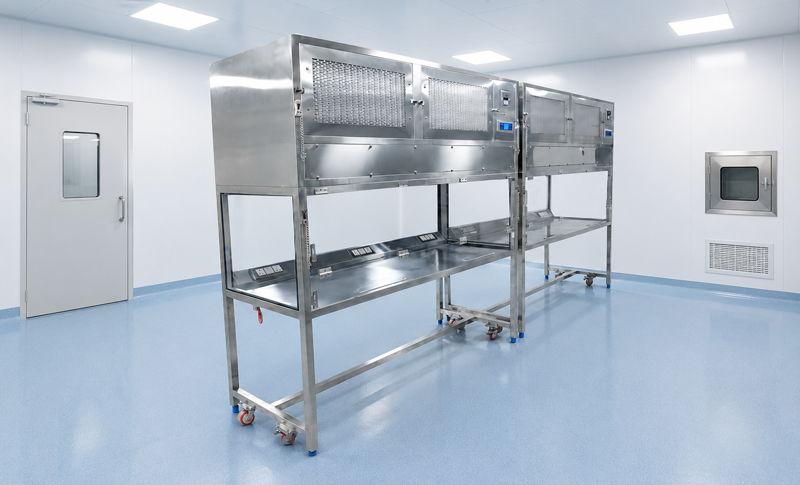

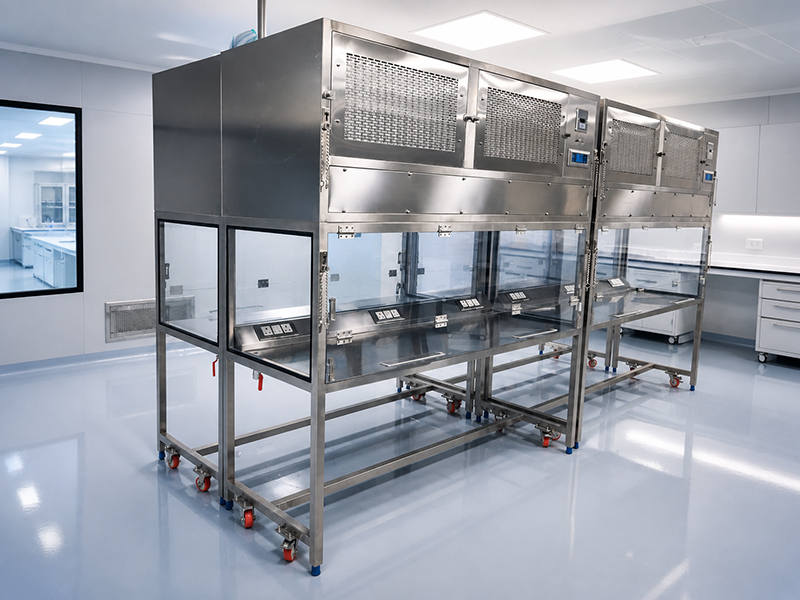

Laminar Air Flow (Vertical/Horizontal)

Sterile Working Environment

  • Unidirectional airflow with HEPA filters

  • ISO class cleanliness compliance

  • Uniform air velocity distribution

  • Ideal for critical operations

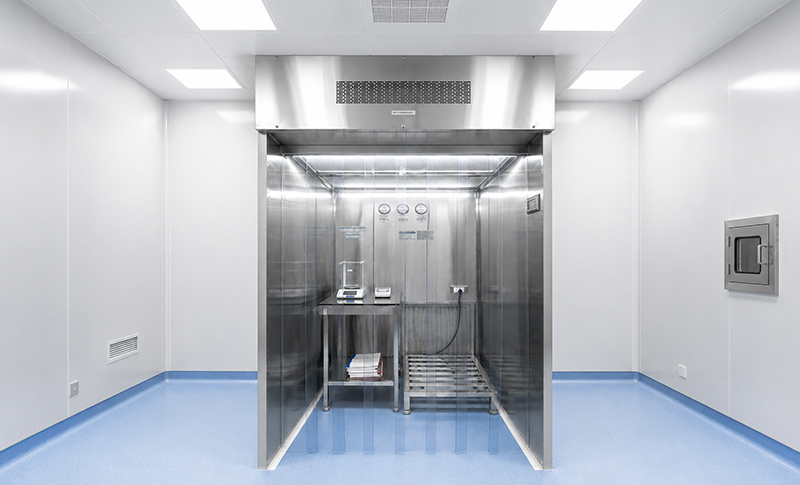

Powder Dispensing Booth/Sampling Booth

Containment & Dust Control

  • Downflow airflow system

  • Prevents cross contamination

  • Protects operator & environment

  • Integrated filtration system

Laminar Air Flow Workstation Technical Details:

  • MOC: SS 304/SS 316/customized

  • Folding polycarbonate panel at the front

  • Laminar airflow system (vertical or horizontal)

  • Fresh air pre-filter & LED lighting

  • HEPA filter H14/H13 & digital gauges

  • Perforated plate or membrane distributor air outlet surface

  • Speed control motor blower to maintain ISO Class-5

  • Integrated control system

  • Technical documentation according to the machinery directive

  • GMP-/ FDA-compliant design

Dispensing/Sampling booth Technical Details:

  • MOC: SS 304/SS 316/customized

  • Reverse laminar airflow system

  • Front flow restriction with anti-static PVC curtain

  • Fresh air pre-filter & intermediate filter

  • HEPA filter H14/H13

  • Digital gauges & LED lighting

  • Perforated plate or membrane distributor air outlet surface

  • Integrated cooling system incl. mixed water control for condensate-free cooling

  • Control system in a separate switch cabinet

  • GMP-/FDA-compliant design

De-Dusting Tunnel Technical Details:

  • MOC: GI powder coated/SS 304/FLP option

  • Double walled construction

  • Statically & dynamically motor-blower

  • Air velocity 4000 to 6000 FPM

  • SS roller/belt conveyor

  • Two stage filtration (EU4-EU6)

  • Microprocessor based control supervises all functions PLC/HMI optional

  • Adjustable brushing system (optional)

  • PVC semi/high speed shutter

  • Emergency switch & LED light

  • Removable dust collection tray

  • Protocols: DQ, IQ and OQ

Vertical Laminar Technical Details:

  • Ceiling suspended laminar air flow

  • Horizontal & vertical laminar air flow

  • Stand mounted with working table top

  • MOC: SS 304/SS 316/FLP option

  • Double walled construction

  • Two stage filtration (EU4/H14)

  • Statically & dynamically balanced motor-blower

  • Microprocessor based control

  • Fluorescent LED light & ISO class 5

  • Differential pressure gauge

  • Unidirectional laminar air flow

  • Folding polycarbonate panels/sash (for horizontal LAF/vertical LAF)

  • PAO test port/protocols: DQ, IQ and OQ
